Zinc in PDB 3km2: As-Isolated Tomato Chloroplast Superoxide Dismutase

Enzymatic activity of As-Isolated Tomato Chloroplast Superoxide Dismutase

All present enzymatic activity of As-Isolated Tomato Chloroplast Superoxide Dismutase:
1.15.1.1;

Protein crystallography data

The structure of As-Isolated Tomato Chloroplast Superoxide Dismutase, PDB code: 3km2 was solved by A.Galaleldeen, A.B.Taylor, P.J.Hart, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å) 48.98 / 3.10
Space group P 21 21 21
Cell size a, b, c (Å), α, β, γ (°) 142.033, 144.523, 192.178, 90.00, 90.00, 90.00
R / Rfree (%) 22 / 25.2

Zinc Binding Sites:

The binding sites of Zinc atom in the As-Isolated Tomato Chloroplast Superoxide Dismutase (pdb code 3km2). This binding sites where shown within 5.0 Angstroms radius around Zinc atom.
In total 24 binding sites of Zinc where determined in the As-Isolated Tomato Chloroplast Superoxide Dismutase, PDB code: 3km2:
Jump to Zinc binding site number: 1; 2; 3; 4; 5; 6; 7; 8; 9; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 23; 24;

Zinc binding site 1 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2

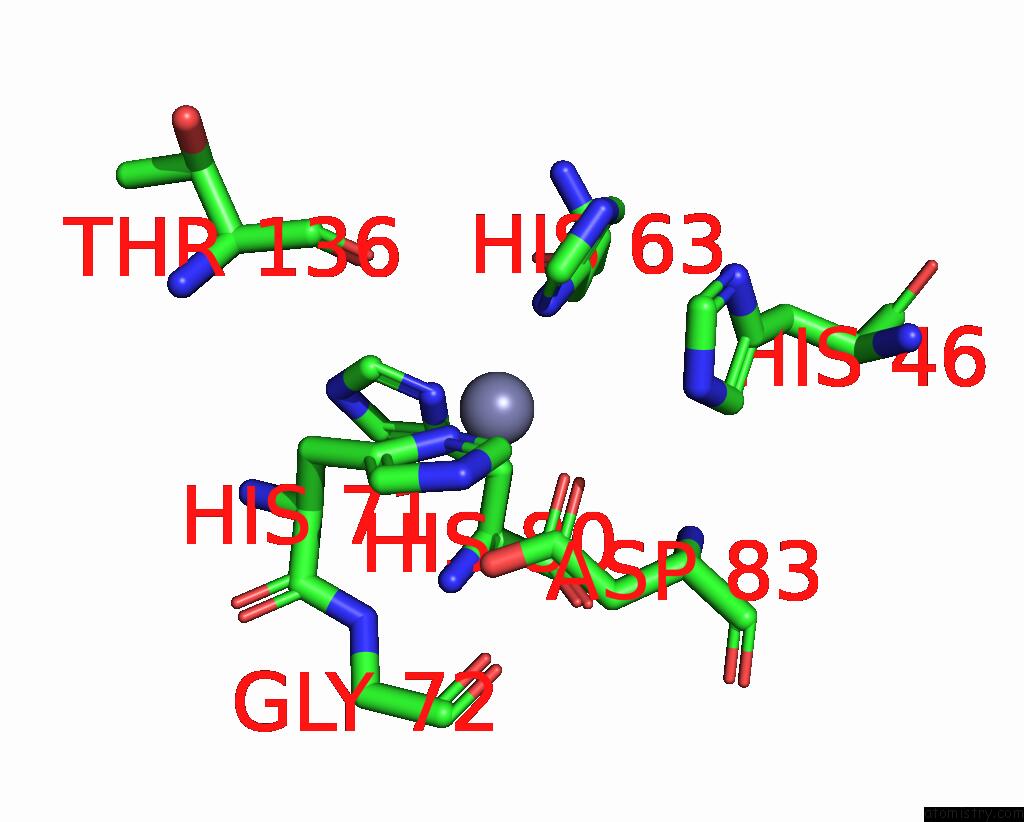

Zinc binding site 1 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 1 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Zn155

b:32.8
occ:1.00
OD1 A:ASP83 2.1 61.0 1.0
ND1 A:HIS71 2.2 65.3 1.0
ND1 A:HIS63 2.2 47.3 1.0
ND1 A:HIS80 2.2 56.0 1.0
CG A:ASP83 2.9 58.5 1.0
CE1 A:HIS71 3.0 63.8 1.0
OD2 A:ASP83 3.0 63.1 1.0
CE1 A:HIS80 3.1 61.4 1.0
CE1 A:HIS63 3.1 55.9 1.0
CG A:HIS63 3.1 47.8 1.0
CG A:HIS80 3.3 51.8 1.0
CG A:HIS71 3.3 64.2 1.0
CB A:HIS63 3.4 50.8 1.0
CB A:HIS80 3.6 49.0 1.0
CB A:HIS71 3.7 66.7 1.0
O A:THR136 3.8 61.0 1.0
CA A:HIS71 4.0 63.1 1.0
NE2 A:HIS71 4.1 63.8 1.0
NE2 A:HIS80 4.2 55.8 1.0
NE2 A:HIS63 4.2 56.4 1.0
CB A:ASP83 4.3 54.8 1.0
CD2 A:HIS63 4.3 52.6 1.0
CD2 A:HIS71 4.3 67.7 1.0
CD2 A:HIS80 4.3 56.3 1.0
CA A:ASP83 4.7 53.9 1.0
N A:HIS80 4.8 54.8 1.0
N A:GLY72 4.8 59.4 1.0
CA A:HIS80 4.8 50.6 1.0
N A:HIS71 4.9 66.3 1.0
C A:THR136 4.9 59.2 1.0
C A:HIS71 4.9 60.2 1.0
N A:ASP83 4.9 58.6 1.0
CA A:HIS63 5.0 45.3 1.0

Zinc binding site 2 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2
Zinc binding site 2 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 2 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Zn155

b:31.9
occ:1.00
OD1 B:ASP83 2.0 58.5 1.0
ND1 B:HIS71 2.2 64.5 1.0
ND1 B:HIS80 2.2 58.1 1.0
ND1 B:HIS63 2.2 46.6 1.0
CG B:ASP83 2.8 59.6 1.0
OD2 B:ASP83 2.9 56.5 1.0
CE1 B:HIS71 3.0 65.8 1.0
CE1 B:HIS80 3.1 57.0 1.0
CG B:HIS80 3.2 51.0 1.0
CG B:HIS63 3.2 47.3 1.0
CE1 B:HIS63 3.2 55.5 1.0
CG B:HIS71 3.3 67.2 1.0
CB B:HIS63 3.4 44.6 1.0
CB B:HIS80 3.5 50.7 1.0
CB B:HIS71 3.8 70.2 1.0
O B:THR136 3.9 59.9 1.0
CA B:HIS71 4.0 63.8 1.0
CB B:ASP83 4.2 61.6 1.0
NE2 B:HIS71 4.2 58.2 1.0
NE2 B:HIS80 4.2 57.6 1.0
CD2 B:HIS80 4.3 56.3 1.0
NE2 B:HIS63 4.3 54.4 1.0
CD2 B:HIS63 4.3 55.5 1.0
CD2 B:HIS71 4.3 70.9 1.0
CA B:ASP83 4.6 55.5 1.0
N B:HIS80 4.7 55.1 1.0
CA B:HIS80 4.7 51.3 1.0
N B:GLY72 4.8 65.0 1.0
N B:ASP83 4.8 54.1 1.0
N B:HIS71 4.9 64.2 1.0
C B:THR136 4.9 58.7 1.0
C B:HIS71 5.0 61.1 1.0
CA B:HIS63 5.0 40.7 1.0

Zinc binding site 3 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2
Zinc binding site 3 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 3 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
C:Zn155

b:36.6
occ:1.00
OD1 C:ASP83 2.0 54.9 1.0
ND1 C:HIS71 2.1 67.0 1.0
ND1 C:HIS63 2.2 48.8 1.0
ND1 C:HIS80 2.3 58.1 1.0
CG C:ASP83 2.8 53.8 1.0
CE1 C:HIS71 2.9 58.3 1.0
OD2 C:ASP83 2.9 61.9 1.0
CE1 C:HIS63 3.1 53.7 1.0
CE1 C:HIS80 3.2 60.4 1.0
CG C:HIS71 3.2 68.0 1.0
CG C:HIS63 3.2 45.6 1.0
CG C:HIS80 3.3 53.8 1.0
CB C:HIS63 3.6 42.8 1.0
CB C:HIS80 3.6 49.9 1.0
CB C:HIS71 3.7 66.2 1.0
CA C:HIS71 3.9 60.1 1.0
O C:THR136 3.9 51.5 1.0
NE2 C:HIS71 4.1 56.8 1.0
CB C:ASP83 4.2 57.0 1.0
CD2 C:HIS71 4.2 62.6 1.0
NE2 C:HIS63 4.3 58.3 1.0
NE2 C:HIS80 4.3 59.8 1.0
CD2 C:HIS63 4.3 53.5 1.0
CD2 C:HIS80 4.4 60.8 1.0
CA C:ASP83 4.6 54.9 1.0
N C:GLY72 4.7 63.5 1.0
N C:HIS80 4.7 51.3 1.0
CA C:HIS80 4.8 49.3 1.0
N C:HIS71 4.9 65.6 1.0
N C:ASP83 4.9 60.3 1.0
C C:HIS71 4.9 61.9 1.0
C C:THR136 4.9 57.0 1.0
CD2 C:HIS46 5.0 46.0 1.0

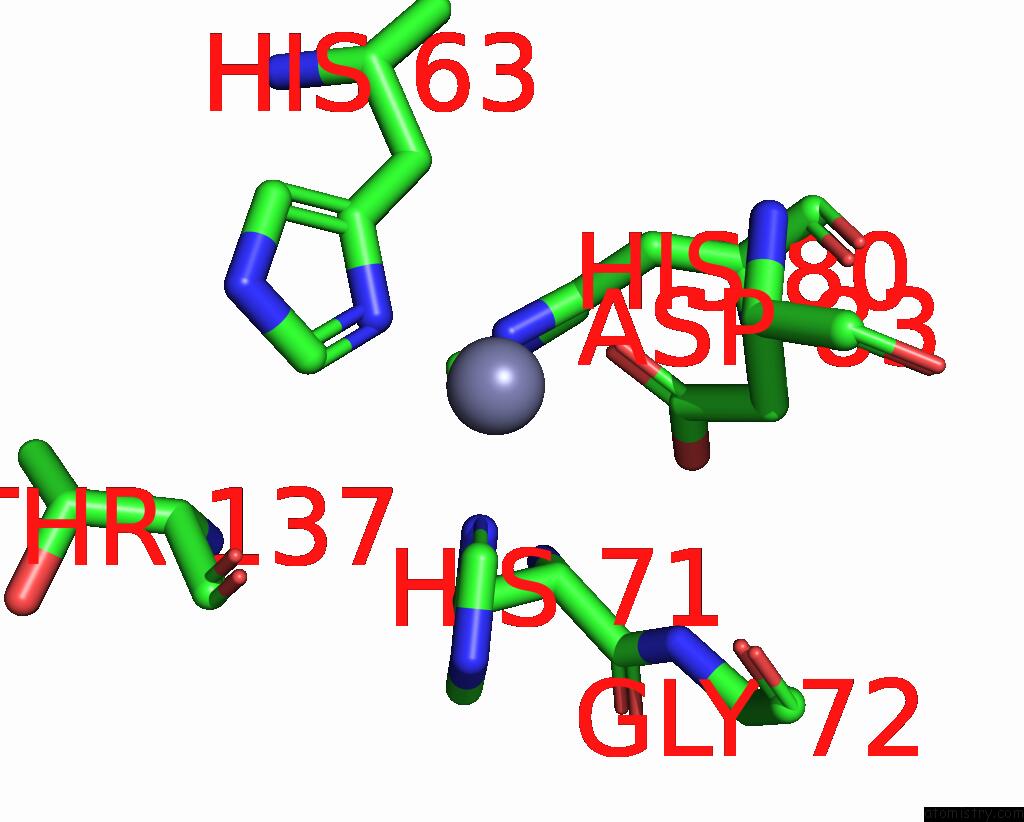

Zinc binding site 4 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2
Zinc binding site 4 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 4 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
D:Zn155

b:88.9
occ:1.00
OD1 D:ASP83 2.1 54.9 1.0
ND1 D:HIS80 2.2 45.9 1.0
ND1 D:HIS71 2.2 60.8 1.0
ND1 D:HIS63 2.2 46.1 1.0
CG D:ASP83 2.9 54.9 1.0
CE1 D:HIS71 3.0 61.0 1.0
OD2 D:ASP83 3.0 57.9 1.0
CE1 D:HIS80 3.0 57.2 1.0
CG D:HIS80 3.2 48.6 1.0
CG D:HIS63 3.2 46.7 1.0
CE1 D:HIS63 3.2 53.0 1.0
CG D:HIS71 3.3 59.8 1.0
CB D:HIS63 3.5 45.8 1.0
CB D:HIS80 3.6 54.7 1.0
CB D:HIS71 3.7 68.6 1.0
CA D:HIS71 3.9 59.3 1.0
NE2 D:HIS80 4.2 55.8 1.0
NE2 D:HIS71 4.2 62.0 1.0
CB D:ASP83 4.3 61.5 1.0
CD2 D:HIS80 4.3 60.0 1.0
CD2 D:HIS71 4.3 63.7 1.0
NE2 D:HIS63 4.3 52.8 1.0
CD2 D:HIS63 4.4 53.1 1.0
CA D:ASP83 4.7 58.7 1.0
N D:HIS80 4.7 56.0 1.0
N D:GLY72 4.7 59.1 1.0
CA D:HIS80 4.8 53.6 1.0
N D:HIS71 4.8 66.3 1.0
C D:HIS71 4.9 64.8 1.0
N D:ASP83 4.9 60.6 1.0
CA D:HIS63 5.0 43.2 1.0
O D:THR137 5.0 65.8 1.0

Zinc binding site 5 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2
Zinc binding site 5 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 5 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
E:Zn155

b:30.3
occ:1.00
OD1 E:ASP83 2.1 56.8 1.0
ND1 E:HIS80 2.1 52.5 1.0
ND1 E:HIS63 2.1 39.3 1.0
ND1 E:HIS71 2.3 62.8 1.0
CG E:ASP83 2.9 56.8 1.0
CE1 E:HIS80 3.0 54.9 1.0
CG E:HIS63 3.0 53.0 1.0
OD2 E:ASP83 3.0 57.0 1.0
CG E:HIS80 3.1 54.6 1.0
CE1 E:HIS71 3.1 65.5 1.0
CE1 E:HIS63 3.1 50.9 1.0
CB E:HIS63 3.3 52.8 1.0
CG E:HIS71 3.4 54.3 1.0
CB E:HIS80 3.5 50.0 1.0
O E:THR136 3.8 52.7 1.0
CB E:HIS71 3.8 60.1 1.0
CA E:HIS71 4.0 61.3 1.0
NE2 E:HIS80 4.1 48.0 1.0
CD2 E:HIS63 4.2 58.2 1.0
CD2 E:HIS80 4.2 57.3 1.0
NE2 E:HIS63 4.2 56.2 1.0
CB E:ASP83 4.3 57.8 1.0
NE2 E:HIS71 4.3 64.5 1.0
CD2 E:HIS71 4.5 66.0 1.0
CA E:HIS80 4.7 50.2 1.0
N E:HIS80 4.7 54.3 1.0
CA E:ASP83 4.7 52.6 1.0
CA E:HIS63 4.8 42.5 1.0
C E:THR136 4.9 54.2 1.0
N E:GLY72 4.9 62.6 1.0
N E:ASP83 4.9 52.0 1.0
N E:HIS71 4.9 69.7 1.0

Zinc binding site 6 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2
Zinc binding site 6 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 6 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
F:Zn155

b:34.8
occ:1.00
OD1 F:ASP83 2.0 56.9 1.0
ND1 F:HIS80 2.1 52.9 1.0
ND1 F:HIS63 2.2 49.9 1.0
ND1 F:HIS71 2.3 69.2 1.0
CG F:ASP83 2.9 55.0 1.0
CE1 F:HIS80 3.0 58.3 1.0
OD2 F:ASP83 3.1 54.9 1.0
CG F:HIS80 3.1 53.1 1.0
CG F:HIS63 3.1 52.0 1.0
CE1 F:HIS71 3.1 67.7 1.0
CE1 F:HIS63 3.2 53.6 1.0
CB F:HIS63 3.3 46.3 1.0
CG F:HIS71 3.4 61.5 1.0
CB F:HIS80 3.4 51.3 1.0
CB F:HIS71 3.8 65.4 1.0
O F:THR136 3.9 56.2 1.0
CA F:HIS71 4.0 61.4 1.0
NE2 F:HIS80 4.1 56.9 1.0
CD2 F:HIS80 4.2 61.8 1.0
CB F:ASP83 4.2 60.1 1.0
CD2 F:HIS63 4.3 55.4 1.0
NE2 F:HIS63 4.3 51.7 1.0
NE2 F:HIS71 4.3 60.7 1.0
CD2 F:HIS71 4.5 64.8 1.0
CA F:ASP83 4.7 56.2 1.0
CA F:HIS80 4.7 49.4 1.0
N F:HIS80 4.7 56.0 1.0
N F:ASP83 4.8 57.1 1.0
CA F:HIS63 4.8 45.7 1.0
N F:GLY72 4.9 67.2 1.0
C F:THR136 4.9 57.6 1.0
N F:HIS71 4.9 62.7 1.0

Zinc binding site 7 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2
Zinc binding site 7 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 7 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
G:Zn155

b:66.9
occ:1.00
ND1 G:HIS80 2.0 52.8 1.0
OD1 G:ASP83 2.1 53.0 1.0
ND1 G:HIS71 2.3 64.8 1.0
ND1 G:HIS63 2.4 47.7 1.0
CG G:ASP83 2.9 54.7 1.0
CE1 G:HIS80 2.9 56.1 1.0
CG G:HIS80 3.0 49.3 1.0
OD2 G:ASP83 3.0 53.1 1.0
CE1 G:HIS71 3.1 68.3 1.0
CG G:HIS63 3.3 48.8 1.0
CG G:HIS71 3.4 59.2 1.0
CB G:HIS80 3.4 53.5 1.0
CE1 G:HIS63 3.4 53.5 1.0
CB G:HIS63 3.4 47.6 1.0
CB G:HIS71 3.7 65.1 1.0
O G:THR136 3.8 64.2 1.0
CA G:HIS71 3.9 60.1 1.0
NE2 G:HIS80 4.0 61.3 1.0
CD2 G:HIS80 4.1 51.6 1.0
CB G:ASP83 4.3 62.7 1.0
NE2 G:HIS71 4.3 66.0 1.0
CD2 G:HIS71 4.4 68.8 1.0
CD2 G:HIS63 4.5 56.1 1.0
NE2 G:HIS63 4.5 55.8 1.0
N G:HIS80 4.6 68.5 1.0
CA G:HIS80 4.6 56.0 1.0
N G:GLY72 4.7 65.6 1.0
N G:HIS71 4.8 65.2 1.0
CA G:ASP83 4.8 58.9 1.0
C G:HIS71 4.9 62.8 1.0
C G:THR136 4.9 65.3 1.0
CA G:HIS63 5.0 47.6 1.0
N G:ASP83 5.0 60.9 1.0

Zinc binding site 8 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2
Zinc binding site 8 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 8 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
H:Zn155

b:33.5
occ:1.00
OD1 H:ASP83 2.1 58.9 1.0
ND1 H:HIS80 2.1 51.9 1.0
ND1 H:HIS71 2.3 62.2 1.0
ND1 H:HIS63 2.3 47.7 1.0
CG H:ASP83 2.8 54.9 1.0
OD2 H:ASP83 2.9 56.7 1.0
CE1 H:HIS80 3.0 50.1 1.0
CG H:HIS80 3.1 54.5 1.0
CE1 H:HIS71 3.1 70.2 1.0
CG H:HIS63 3.2 47.1 1.0
CE1 H:HIS63 3.3 52.4 1.0
CG H:HIS71 3.4 64.5 1.0
CB H:HIS63 3.4 40.6 1.0
CB H:HIS80 3.4 54.4 1.0
CB H:HIS71 3.7 70.4 1.0
CA H:HIS71 3.9 59.9 1.0
O H:THR136 4.0 56.7 1.0
NE2 H:HIS80 4.1 55.1 1.0
CD2 H:HIS80 4.1 53.5 1.0
CB H:ASP83 4.2 58.1 1.0
NE2 H:HIS71 4.3 61.8 1.0
CD2 H:HIS63 4.4 53.7 1.0
NE2 H:HIS63 4.4 54.1 1.0
CD2 H:HIS71 4.4 63.8 1.0
N H:HIS80 4.6 56.6 1.0
CA H:HIS80 4.6 55.8 1.0
CA H:ASP83 4.7 57.6 1.0
N H:GLY72 4.7 66.3 1.0
N H:ASP83 4.8 57.4 1.0
N H:HIS71 4.8 59.3 1.0
C H:HIS71 4.9 64.8 1.0
CA H:HIS63 4.9 45.0 1.0
C H:THR136 5.0 53.2 1.0

Zinc binding site 9 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2
Zinc binding site 9 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 9 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
I:Zn155

b:58.3
occ:1.00
OD1 I:ASP83 2.1 46.5 1.0
ND1 I:HIS71 2.1 58.8 1.0
ND1 I:HIS63 2.2 42.9 1.0
ND1 I:HIS80 2.3 40.9 1.0
CG I:ASP83 2.8 51.0 1.0
CE1 I:HIS71 2.9 67.9 1.0
OD2 I:ASP83 3.0 56.0 1.0
CE1 I:HIS80 3.1 50.7 1.0
CE1 I:HIS63 3.2 51.2 1.0
CG I:HIS63 3.2 41.5 1.0
CG I:HIS80 3.3 46.4 1.0
CG I:HIS71 3.3 56.0 1.0
CB I:HIS63 3.6 45.7 1.0
CB I:HIS80 3.6 51.1 1.0
CB I:HIS71 3.7 68.1 1.0
O I:THR136 3.9 66.2 1.0
CA I:HIS71 4.0 66.3 1.0
NE2 I:HIS71 4.1 61.1 1.0
CB I:ASP83 4.2 56.7 1.0
NE2 I:HIS80 4.2 58.5 1.0
NE2 I:HIS63 4.3 57.3 1.0
CD2 I:HIS71 4.3 60.3 1.0
CD2 I:HIS80 4.3 55.7 1.0
CD2 I:HIS63 4.3 56.2 1.0
CA I:ASP83 4.7 61.1 1.0
N I:HIS80 4.7 61.4 1.0
N I:GLY72 4.8 64.7 1.0
CA I:HIS80 4.8 57.2 1.0
N I:ASP83 4.8 55.5 1.0
N I:HIS71 4.9 66.1 1.0
C I:HIS71 5.0 62.2 1.0
C I:THR136 5.0 61.2 1.0

Zinc binding site 10 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2
Zinc binding site 10 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 10 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
J:Zn155

b:79.2
occ:1.00
OD1 J:ASP83 2.0 53.4 1.0
ND1 J:HIS80 2.1 48.4 1.0
ND1 J:HIS63 2.2 45.4 1.0
ND1 J:HIS71 2.3 54.6 1.0
CG J:ASP83 2.9 51.8 1.0
CE1 J:HIS80 3.0 53.1 1.0
OD2 J:ASP83 3.1 49.6 1.0
CG J:HIS63 3.1 44.6 1.0
CE1 J:HIS71 3.1 54.6 1.0
CG J:HIS80 3.1 53.6 1.0
CE1 J:HIS63 3.2 46.6 1.0
CB J:HIS63 3.3 40.6 1.0
CG J:HIS71 3.4 57.3 1.0
CB J:HIS80 3.5 56.7 1.0
CB J:HIS71 3.8 71.6 1.0
CA J:HIS71 4.0 66.1 1.0
NE2 J:HIS80 4.1 53.2 1.0
CD2 J:HIS80 4.2 56.7 1.0
CD2 J:HIS63 4.3 57.5 1.0
CB J:ASP83 4.3 61.6 1.0
NE2 J:HIS63 4.3 55.2 1.0
NE2 J:HIS71 4.3 53.7 1.0
CD2 J:HIS71 4.5 63.5 1.0
N J:HIS80 4.7 58.6 1.0
CA J:HIS80 4.7 49.2 1.0
CA J:ASP83 4.7 55.6 1.0
N J:GLY72 4.8 59.9 1.0
CA J:HIS63 4.8 45.4 1.0
N J:ASP83 4.9 50.5 1.0
N J:HIS71 4.9 65.7 1.0
C J:HIS71 5.0 67.3 1.0

Zinc binding site 11 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2

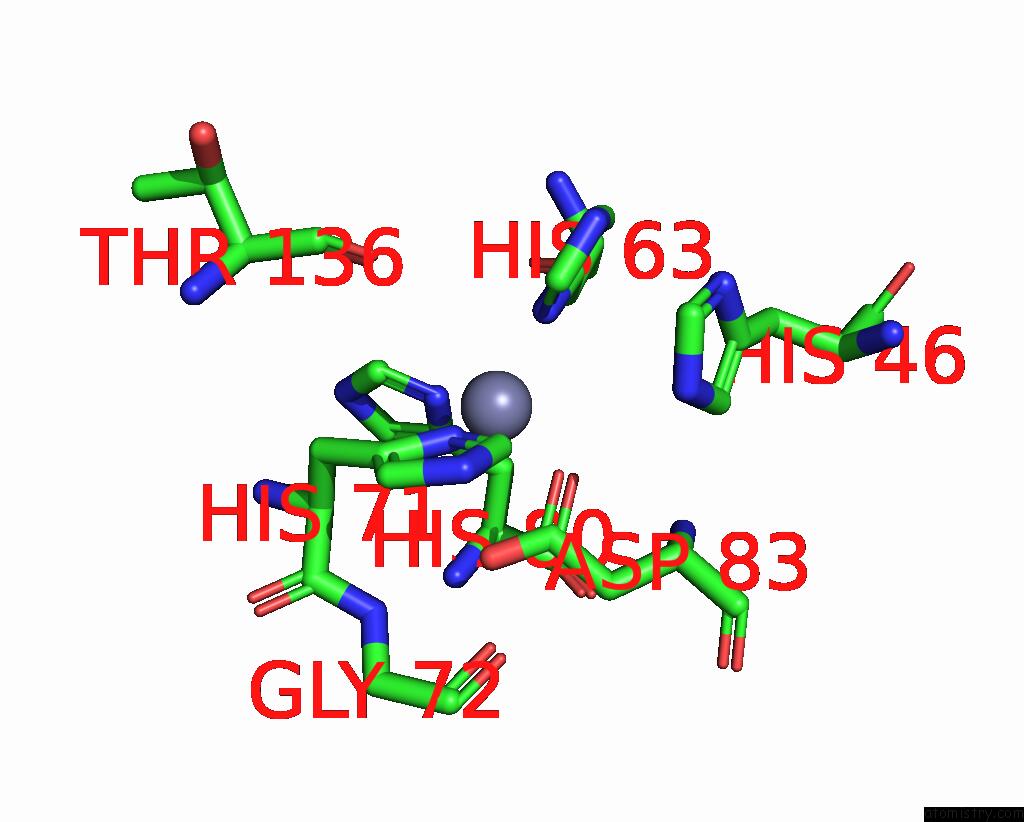

Zinc binding site 11 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 11 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
K:Zn155

b:61.4
occ:1.00
OD1 K:ASP83 2.0 57.0 1.0
ND1 K:HIS71 2.1 64.2 1.0
ND1 K:HIS63 2.1 50.4 1.0
ND1 K:HIS80 2.3 45.8 1.0
CG K:ASP83 2.8 55.6 1.0
CE1 K:HIS71 2.9 67.9 1.0
OD2 K:ASP83 3.0 49.0 1.0
CE1 K:HIS63 3.1 57.4 1.0
CE1 K:HIS80 3.2 53.7 1.0
CG K:HIS63 3.2 50.0 1.0
CG K:HIS71 3.2 64.7 1.0
CG K:HIS80 3.3 51.4 1.0
CB K:HIS63 3.5 45.5 1.0
CB K:HIS71 3.7 65.4 1.0
CB K:HIS80 3.7 55.7 1.0
O K:THR136 3.9 60.9 1.0
CA K:HIS71 4.0 64.7 1.0
NE2 K:HIS71 4.1 63.3 1.0
NE2 K:HIS63 4.2 57.4 1.0
CB K:ASP83 4.2 65.1 1.0
CD2 K:HIS71 4.2 71.9 1.0
CD2 K:HIS63 4.3 58.9 1.0
NE2 K:HIS80 4.3 62.4 1.0
CD2 K:HIS80 4.4 59.8 1.0
CA K:ASP83 4.7 57.8 1.0
N K:GLY72 4.8 64.3 1.0
N K:HIS80 4.9 60.9 1.0
C K:THR136 4.9 56.8 1.0
CD2 K:HIS46 4.9 50.5 1.0
CA K:HIS80 4.9 56.0 1.0
N K:ASP83 4.9 47.5 1.0
N K:HIS71 4.9 64.0 1.0
C K:HIS71 5.0 66.7 1.0

Zinc binding site 12 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2

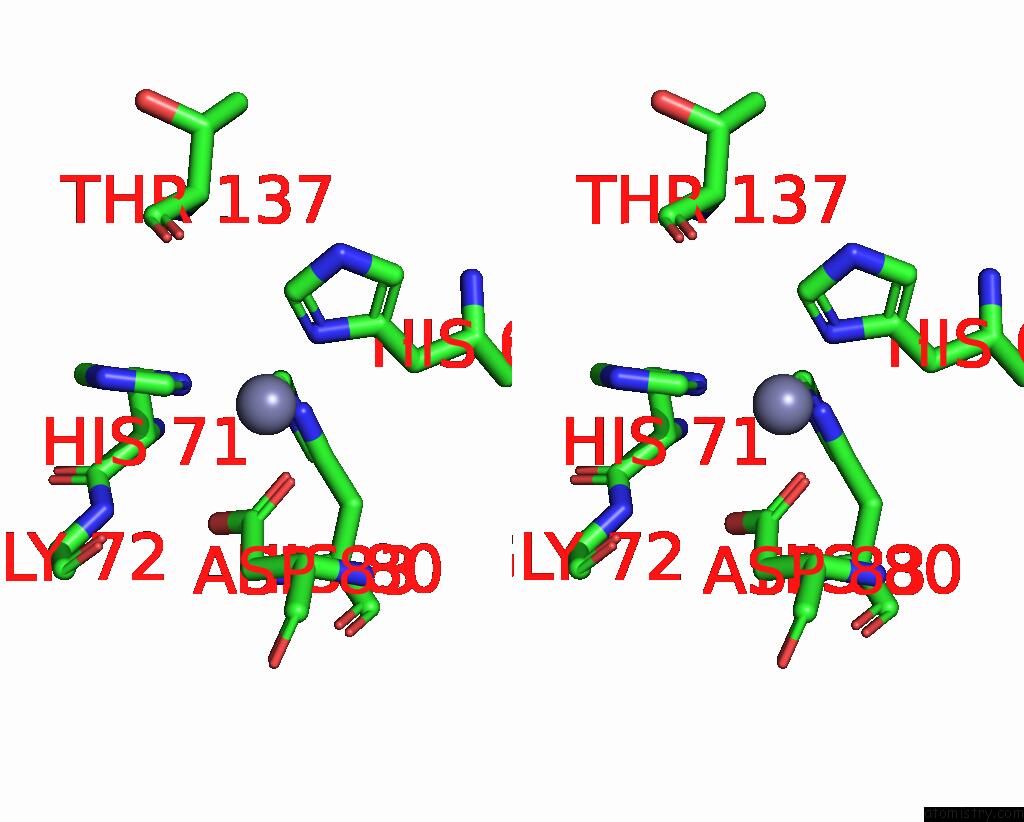

Zinc binding site 12 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 12 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
L:Zn155

b:0.2
occ:1.00
OD1 L:ASP83 2.1 53.8 1.0
ND1 L:HIS71 2.1 61.1 1.0
ND1 L:HIS80 2.2 47.3 1.0
ND1 L:HIS63 2.3 42.7 1.0
CG L:ASP83 2.9 56.1 1.0
OD2 L:ASP83 3.0 55.5 1.0
CE1 L:HIS71 3.0 63.3 1.0
CE1 L:HIS80 3.1 53.9 1.0
CG L:HIS71 3.2 64.4 1.0
CG L:HIS80 3.2 47.0 1.0
CE1 L:HIS63 3.2 54.0 1.0
CG L:HIS63 3.3 44.0 1.0
CB L:HIS63 3.6 39.9 1.0
CB L:HIS80 3.6 52.4 1.0
CB L:HIS71 3.6 72.6 1.0
CA L:HIS71 3.8 62.8 1.0
NE2 L:HIS71 4.1 57.2 1.0
NE2 L:HIS80 4.2 52.1 1.0
CB L:ASP83 4.3 58.6 1.0
CD2 L:HIS71 4.3 63.2 1.0
CD2 L:HIS80 4.3 61.5 1.0
NE2 L:HIS63 4.4 55.7 1.0
CD2 L:HIS63 4.4 60.0 1.0
N L:HIS80 4.7 57.0 1.0
N L:GLY72 4.7 67.5 1.0
N L:HIS71 4.7 71.5 1.0
CA L:HIS80 4.7 54.9 1.0
CA L:ASP83 4.8 54.1 1.0
C L:HIS71 4.9 68.9 1.0
O L:THR137 4.9 66.1 1.0
N L:ASP83 5.0 56.3 1.0

Zinc binding site 13 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2

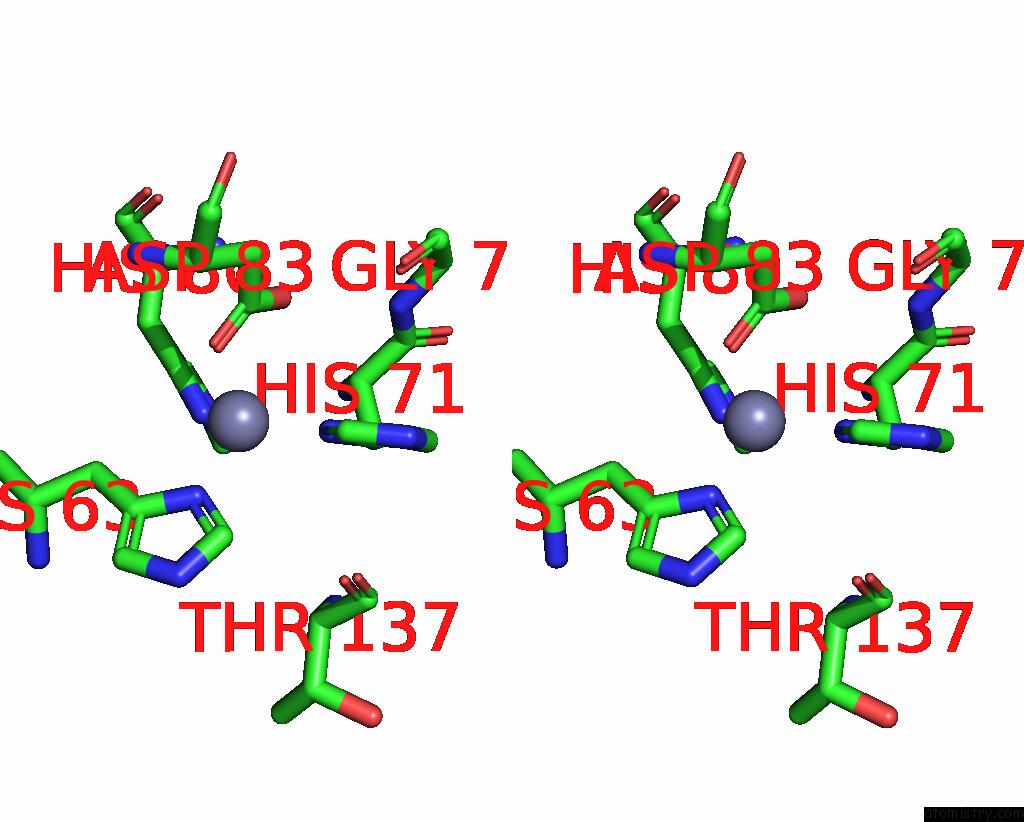

Zinc binding site 13 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 13 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
M:Zn155

b:86.7
occ:1.00
OD1 M:ASP83 2.0 57.5 1.0
ND1 M:HIS71 2.1 59.0 1.0
ND1 M:HIS63 2.2 46.7 1.0
ND1 M:HIS80 2.3 53.5 1.0
CG M:ASP83 2.8 55.7 1.0
CE1 M:HIS71 2.9 55.0 1.0
OD2 M:ASP83 3.0 55.8 1.0
CE1 M:HIS63 3.1 54.0 1.0
CG M:HIS63 3.1 46.4 1.0
CE1 M:HIS80 3.2 58.6 1.0
CG M:HIS80 3.3 51.8 1.0
CG M:HIS71 3.3 65.0 1.0
CB M:HIS63 3.4 47.0 1.0
CB M:HIS80 3.6 51.7 1.0
CB M:HIS71 3.8 69.8 1.0
CA M:HIS71 4.0 62.8 1.0
NE2 M:HIS71 4.1 60.3 1.0
CB M:ASP83 4.2 58.9 1.0
NE2 M:HIS63 4.2 53.9 1.0
NE2 M:HIS80 4.3 63.0 1.0
CD2 M:HIS63 4.3 55.6 1.0
CD2 M:HIS71 4.3 71.8 1.0
CD2 M:HIS80 4.4 61.2 1.0
CA M:ASP83 4.6 54.4 1.0
O M:THR137 4.7 70.9 1.0
N M:HIS80 4.8 52.3 1.0
CA M:HIS80 4.8 53.3 1.0
N M:GLY72 4.8 65.8 1.0
N M:ASP83 4.9 58.1 1.0
CA M:THR137 4.9 57.5 1.0
N M:HIS71 4.9 59.6 1.0
CA M:HIS63 5.0 48.8 1.0
C M:THR137 5.0 63.0 1.0

Zinc binding site 14 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2
Zinc binding site 14 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 14 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
N:Zn155

b:75.3
occ:1.00
ND1 N:HIS63 2.1 51.4 1.0
ND1 N:HIS71 2.2 64.1 1.0
ND1 N:HIS80 2.2 54.3 1.0
OD1 N:ASP83 2.3 60.0 1.0
CE1 N:HIS80 3.0 56.6 1.0
CE1 N:HIS71 3.0 66.4 1.0
CE1 N:HIS63 3.1 59.6 1.0
CG N:HIS63 3.1 49.9 1.0
CG N:ASP83 3.1 60.1 1.0
OD2 N:ASP83 3.2 64.7 1.0
CG N:HIS71 3.3 63.3 1.0
CG N:HIS80 3.3 57.4 1.0
CB N:HIS63 3.4 46.1 1.0
O N:THR136 3.6 63.7 1.0
CB N:HIS71 3.7 69.2 1.0
CB N:HIS80 3.7 56.8 1.0
CA N:HIS71 4.0 63.6 1.0
NE2 N:HIS80 4.2 52.2 1.0
NE2 N:HIS63 4.2 58.4 1.0
NE2 N:HIS71 4.2 66.9 1.0
CD2 N:HIS63 4.2 53.8 1.0
CD2 N:HIS80 4.3 56.9 1.0
CD2 N:HIS71 4.3 67.1 1.0
CB N:ASP83 4.5 58.2 1.0
C N:THR136 4.7 58.3 1.0
N N:GLY72 4.9 69.6 1.0
CA N:HIS63 4.9 46.3 1.0
N N:HIS71 4.9 64.7 1.0
N N:HIS80 4.9 62.9 1.0
CA N:ASP83 4.9 58.8 1.0
CA N:HIS80 5.0 55.2 1.0
C N:HIS71 5.0 68.9 1.0

Zinc binding site 15 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2
Zinc binding site 15 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 15 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
O:Zn155

b:86.0
occ:1.00
ND1 O:HIS63 2.1 52.1 1.0
OD1 O:ASP83 2.1 60.4 1.0
ND1 O:HIS80 2.2 59.5 1.0
ND1 O:HIS71 2.3 68.5 1.0
CG O:ASP83 3.0 59.5 1.0
CE1 O:HIS80 3.0 54.5 1.0
CG O:HIS63 3.1 49.4 1.0
CE1 O:HIS71 3.1 71.0 1.0
CE1 O:HIS63 3.1 55.6 1.0
OD2 O:ASP83 3.1 59.5 1.0
CG O:HIS80 3.2 50.9 1.0
CB O:HIS63 3.3 42.1 1.0
CG O:HIS71 3.4 65.3 1.0
CB O:HIS80 3.6 48.2 1.0
CB O:HIS71 3.8 66.6 1.0
O O:THR136 3.8 67.8 1.0
CA O:HIS71 4.0 66.0 1.0
NE2 O:HIS80 4.2 60.2 1.0
CD2 O:HIS63 4.2 59.0 1.0
NE2 O:HIS63 4.2 60.2 1.0
NE2 O:HIS71 4.3 61.9 1.0
CD2 O:HIS80 4.3 59.6 1.0
CB O:ASP83 4.3 61.0 1.0
CD2 O:HIS71 4.4 68.3 1.0
CA O:ASP83 4.8 59.5 1.0
CA O:HIS80 4.8 61.1 1.0
N O:HIS80 4.8 69.7 1.0
CA O:HIS63 4.8 49.3 1.0
C O:THR136 4.9 62.1 1.0
N O:GLY72 4.9 76.7 1.0
N O:ASP83 4.9 59.5 1.0
N O:HIS71 5.0 68.4 1.0

Zinc binding site 16 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2

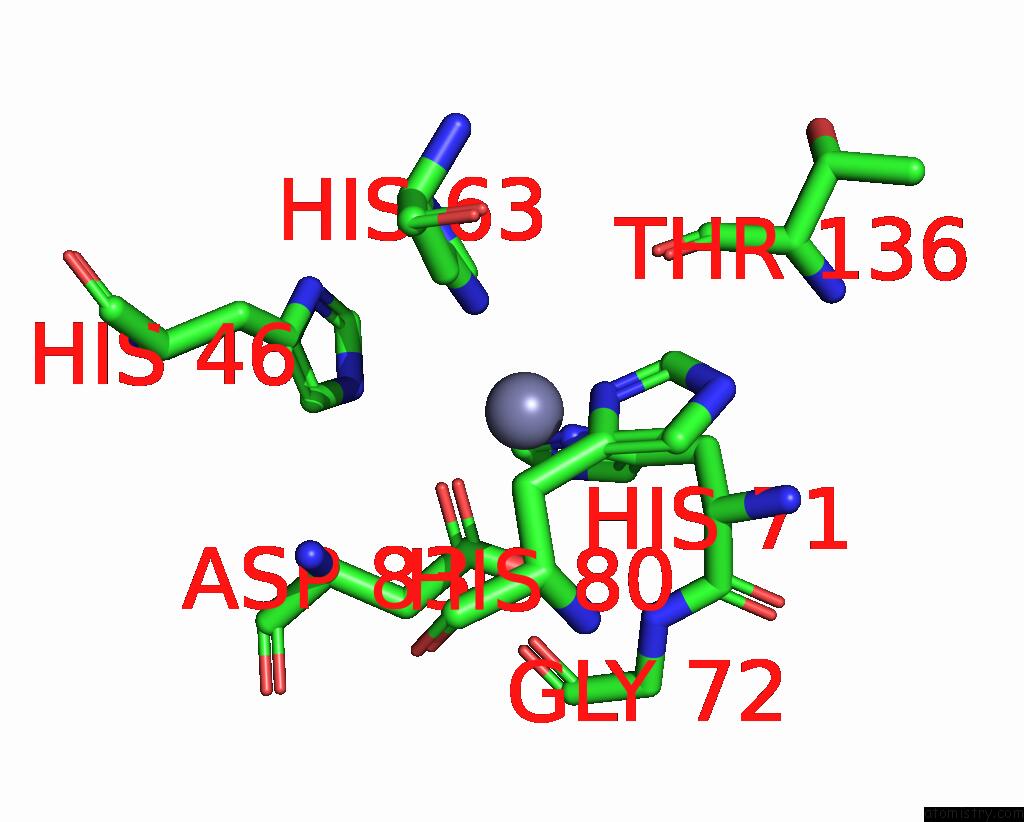

Zinc binding site 16 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 16 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
P:Zn155

b:83.1
occ:1.00
OD1 P:ASP83 1.9 55.9 1.0
ND1 P:HIS71 2.2 58.6 1.0
ND1 P:HIS63 2.3 52.6 1.0
ND1 P:HIS80 2.3 56.4 1.0
CG P:ASP83 2.7 55.4 1.0
OD2 P:ASP83 2.9 51.5 1.0
CE1 P:HIS71 3.0 57.9 1.0
CG P:HIS63 3.2 51.9 1.0
CE1 P:HIS80 3.2 55.7 1.0
CE1 P:HIS63 3.2 58.5 1.0
CG P:HIS80 3.3 52.3 1.0
CG P:HIS71 3.3 65.2 1.0
CB P:HIS63 3.5 48.9 1.0
CB P:HIS80 3.5 51.8 1.0
CB P:HIS71 3.8 68.2 1.0
O P:THR136 4.0 58.5 1.0
CA P:HIS71 4.0 65.8 1.0
CB P:ASP83 4.1 63.0 1.0
NE2 P:HIS71 4.2 56.3 1.0
NE2 P:HIS80 4.3 60.8 1.0
NE2 P:HIS63 4.4 58.3 1.0
CD2 P:HIS80 4.4 61.4 1.0
CD2 P:HIS63 4.4 56.3 1.0
CD2 P:HIS71 4.4 69.7 1.0
CA P:ASP83 4.6 60.4 1.0
N P:HIS80 4.7 59.3 1.0
CA P:HIS80 4.7 53.6 1.0
N P:ASP83 4.7 59.6 1.0
N P:GLY72 4.7 66.9 1.0
CD2 P:HIS46 4.9 49.9 1.0
N P:HIS71 5.0 68.2 1.0
C P:HIS71 5.0 72.3 1.0
CA P:HIS63 5.0 49.8 1.0

Zinc binding site 17 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2

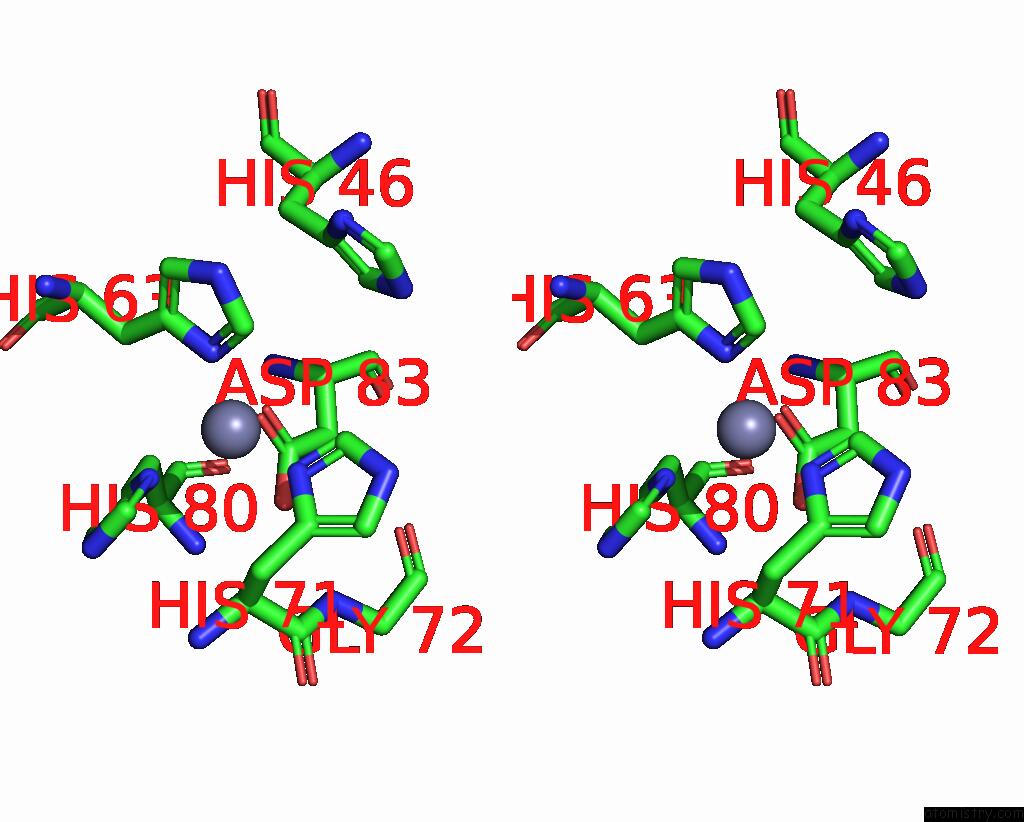

Zinc binding site 17 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 17 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
Q:Zn155

b:95.5
occ:1.00
OD1 Q:ASP83 2.0 48.1 1.0
ND1 Q:HIS63 2.2 48.9 1.0
ND1 Q:HIS71 2.2 60.9 1.0
ND1 Q:HIS80 2.3 52.8 1.0
CG Q:ASP83 2.8 53.5 1.0
CE1 Q:HIS71 3.0 64.0 1.0
OD2 Q:ASP83 3.0 55.2 1.0
CG Q:HIS63 3.2 52.1 1.0
CE1 Q:HIS63 3.2 51.7 1.0
CE1 Q:HIS80 3.2 53.9 1.0
CG Q:HIS80 3.3 52.5 1.0
CG Q:HIS71 3.4 61.6 1.0
CB Q:HIS63 3.4 45.6 1.0
CB Q:HIS80 3.6 47.0 1.0
CB Q:HIS71 3.9 68.0 1.0
CA Q:HIS71 4.1 62.2 1.0
CB Q:ASP83 4.2 64.4 1.0
NE2 Q:HIS71 4.2 60.8 1.0
NE2 Q:HIS63 4.3 54.3 1.0
CD2 Q:HIS63 4.3 54.4 1.0
NE2 Q:HIS80 4.3 59.4 1.0
CD2 Q:HIS80 4.4 60.8 1.0
CD2 Q:HIS71 4.4 67.9 1.0
CA Q:ASP83 4.6 56.0 1.0
CA Q:HIS80 4.8 55.2 1.0
N Q:ASP83 4.8 52.0 1.0
N Q:HIS80 4.8 58.9 1.0
N Q:GLY72 4.9 65.6 1.0
CD2 Q:HIS46 4.9 48.1 1.0
CA Q:HIS63 4.9 51.7 1.0

Zinc binding site 18 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2
Zinc binding site 18 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 18 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
R:Zn155

b:95.2
occ:1.00
OD1 R:ASP83 2.0 82.1 1.0
ND1 R:HIS71 2.1 0.4 1.0
ND1 R:HIS63 2.2 59.2 1.0
ND1 R:HIS80 2.3 61.2 1.0
CG R:ASP83 2.8 82.1 1.0
CE1 R:HIS71 2.9 0.4 1.0
OD2 R:ASP83 3.0 82.1 1.0
CE1 R:HIS80 3.2 61.2 1.0
CE1 R:HIS63 3.2 61.5 1.0
CG R:HIS63 3.2 59.2 1.0
CG R:HIS80 3.3 61.2 1.0
CG R:HIS71 3.3 0.4 1.0
CB R:HIS63 3.5 59.2 1.0
CB R:HIS80 3.6 61.2 1.0
CB R:HIS71 3.8 0.4 1.0
O R:THR136 3.8 69.4 1.0
CA R:HIS71 4.0 0.4 1.0
NE2 R:HIS71 4.1 0.4 1.0
CB R:ASP83 4.2 82.1 1.0
NE2 R:HIS80 4.3 64.7 1.0
NE2 R:HIS63 4.3 59.2 1.0
CD2 R:HIS71 4.3 0.4 1.0
CD2 R:HIS63 4.3 59.2 1.0
CD2 R:HIS80 4.4 61.2 1.0
CA R:ASP83 4.6 82.1 1.0
N R:GLY72 4.8 0.8 1.0
N R:HIS80 4.8 66.2 1.0
CA R:HIS80 4.8 61.2 1.0
N R:ASP83 4.8 82.1 1.0
C R:THR136 4.9 69.4 1.0
N R:HIS71 5.0 0.4 1.0
C R:HIS71 5.0 0.4 1.0
CD2 R:HIS46 5.0 60.3 1.0

Zinc binding site 19 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2

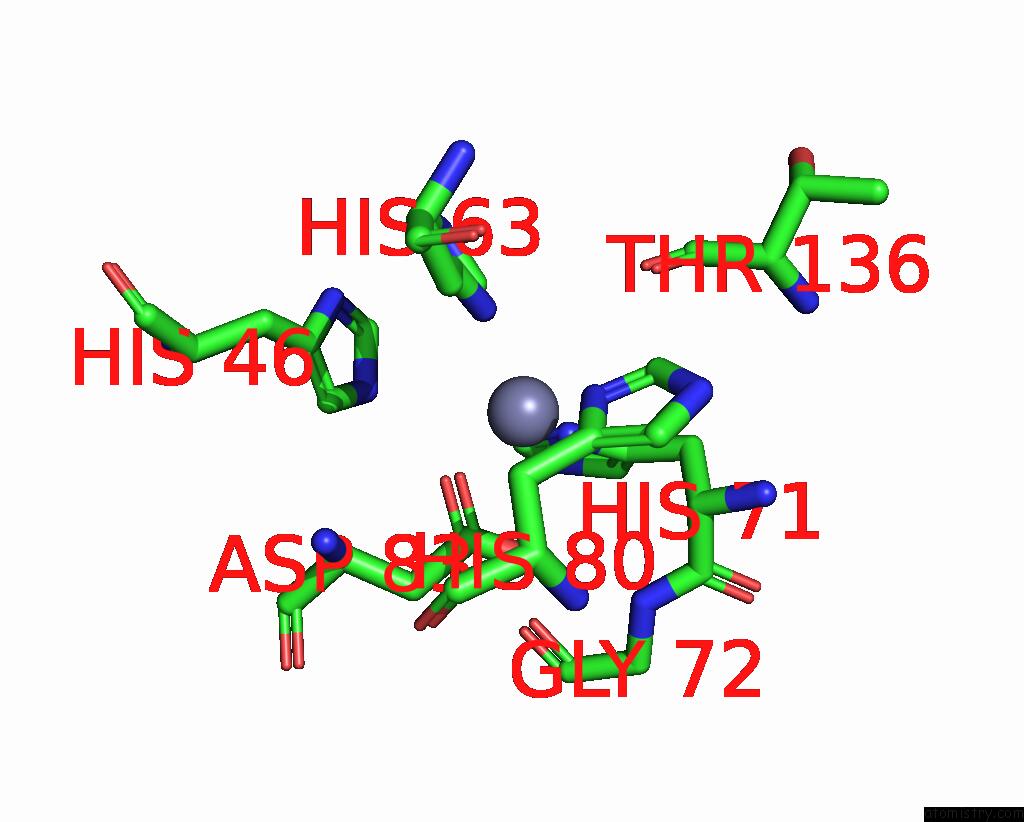

Zinc binding site 19 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 19 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
S:Zn155

b:0.3
occ:1.00
OD1 S:ASP83 1.9 58.1 1.0
ND1 S:HIS71 2.2 69.9 1.0
ND1 S:HIS63 2.2 51.5 1.0
ND1 S:HIS80 2.3 69.2 1.0
CG S:ASP83 2.7 55.8 1.0
OD2 S:ASP83 2.9 59.8 1.0
CE1 S:HIS71 2.9 69.9 1.0
CG S:HIS63 3.2 56.6 1.0
CE1 S:HIS80 3.2 69.2 1.0
CE1 S:HIS63 3.2 54.0 1.0
CG S:HIS80 3.3 69.2 1.0
CG S:HIS71 3.3 69.9 1.0
CB S:HIS63 3.5 47.3 1.0
CB S:HIS80 3.6 69.2 1.0
CB S:HIS71 3.8 69.9 1.0
O S:THR136 4.0 64.5 1.0
CA S:HIS71 4.0 69.9 1.0
CB S:ASP83 4.1 57.4 1.0
NE2 S:HIS71 4.2 69.9 1.0
NE2 S:HIS80 4.3 69.2 1.0
NE2 S:HIS63 4.3 57.8 1.0
CD2 S:HIS63 4.3 64.2 1.0
CD2 S:HIS71 4.4 71.8 1.0
CD2 S:HIS80 4.4 69.2 1.0
CA S:ASP83 4.6 60.4 1.0
N S:HIS80 4.7 69.2 1.0
CA S:HIS80 4.7 69.2 1.0
N S:GLY72 4.7 63.2 1.0
N S:ASP83 4.8 61.6 1.0
CD2 S:HIS46 4.9 50.2 1.0
C S:HIS71 5.0 69.9 1.0
N S:HIS71 5.0 69.9 1.0
CA S:HIS63 5.0 48.4 1.0

Zinc binding site 20 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2
Zinc binding site 20 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

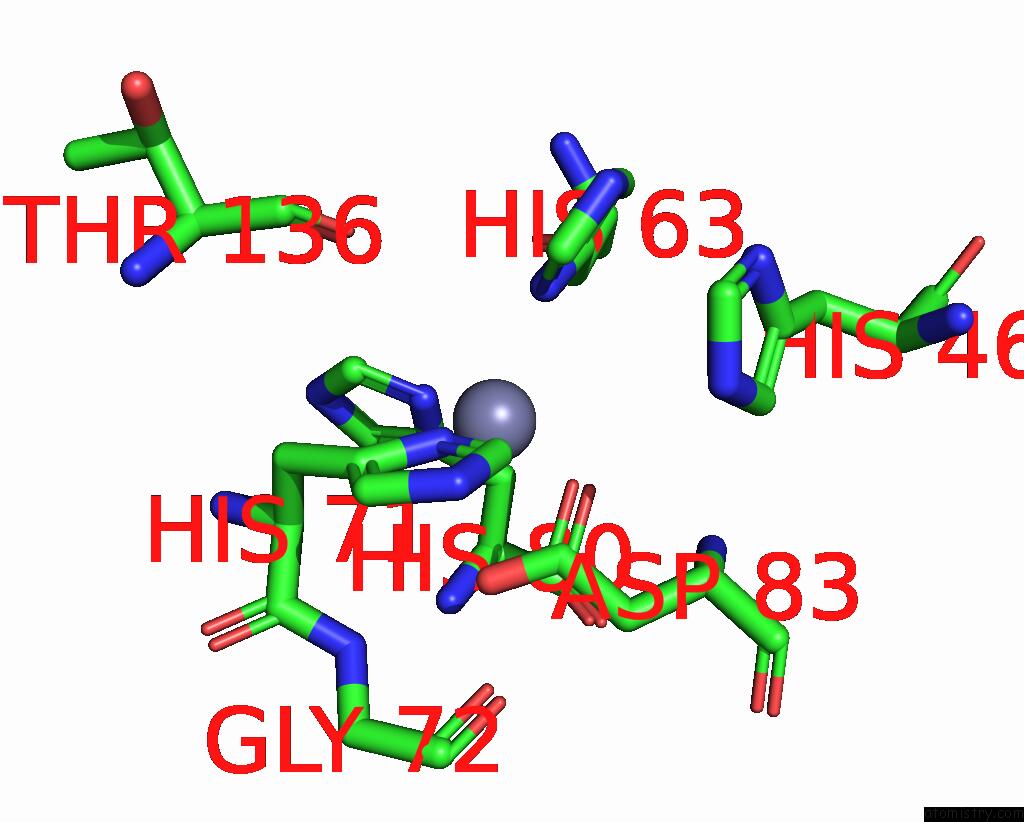

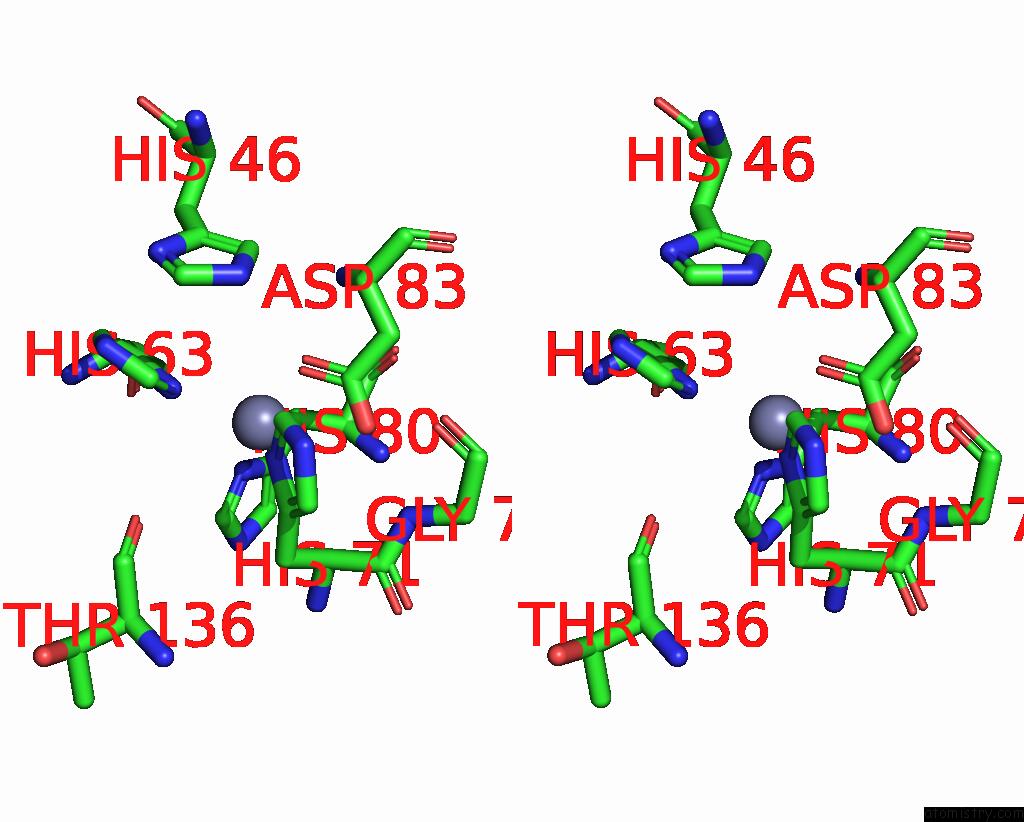

A full contact list of Zinc with other atoms in the Zn binding site number 20 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
T:Zn155

b:82.7
occ:1.00
OD1 T:ASP83 2.0 58.1 1.0
ND1 T:HIS71 2.0 58.1 1.0
ND1 T:HIS80 2.3 56.3 1.0
ND1 T:HIS63 2.4 49.9 1.0
CG T:ASP83 2.6 62.5 1.0
OD2 T:ASP83 2.7 59.2 1.0
CE1 T:HIS71 2.8 60.7 1.0
CG T:HIS71 3.2 61.3 1.0
CE1 T:HIS80 3.2 58.8 1.0
CG T:HIS80 3.3 51.7 1.0
CE1 T:HIS63 3.3 54.5 1.0
CG T:HIS63 3.4 47.9 1.0
CB T:HIS80 3.6 49.7 1.0
CB T:HIS63 3.7 47.4 1.0
CB T:HIS71 3.7 69.7 1.0
CA T:HIS71 3.8 66.2 1.0
NE2 T:HIS71 4.0 62.8 1.0
CB T:ASP83 4.0 55.6 1.0
O T:THR136 4.1 57.8 1.0
CD2 T:HIS71 4.2 67.8 1.0
NE2 T:HIS80 4.3 57.4 1.0
CD2 T:HIS80 4.4 58.7 1.0
NE2 T:HIS63 4.5 59.8 1.0
CA T:ASP83 4.5 57.7 1.0
CD2 T:HIS63 4.5 55.7 1.0
N T:GLY72 4.5 67.5 1.0
N T:HIS80 4.6 61.4 1.0
N T:ASP83 4.7 55.6 1.0
CA T:HIS80 4.7 51.9 1.0
C T:HIS71 4.8 69.0 1.0
N T:HIS71 4.8 68.8 1.0
O T:GLY72 5.0 64.5 1.0
CD2 T:HIS46 5.0 48.7 1.0

Zinc binding site 21 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2
Zinc binding site 21 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 21 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
U:Zn155

b:82.9
occ:1.00
OD1 U:ASP83 2.0 57.8 1.0
ND1 U:HIS80 2.1 52.8 1.0
ND1 U:HIS71 2.2 55.9 1.0
ND1 U:HIS63 2.4 51.5 1.0
CG U:ASP83 2.7 59.1 1.0
OD2 U:ASP83 2.8 61.4 1.0
CE1 U:HIS71 3.0 65.0 1.0
CE1 U:HIS80 3.0 54.0 1.0
CG U:HIS80 3.1 51.3 1.0
CG U:HIS71 3.3 59.7 1.0
CG U:HIS63 3.3 48.2 1.0
CE1 U:HIS63 3.3 56.5 1.0
CB U:HIS80 3.5 52.7 1.0
CB U:HIS63 3.5 45.5 1.0
CB U:HIS71 3.7 70.2 1.0
CA U:HIS71 3.9 67.9 1.0
O U:THR136 4.0 57.7 1.0
CB U:ASP83 4.1 61.9 1.0
NE2 U:HIS80 4.2 61.8 1.0
NE2 U:HIS71 4.2 64.4 1.0
CD2 U:HIS80 4.2 59.7 1.0
CD2 U:HIS71 4.3 61.9 1.0
NE2 U:HIS63 4.4 60.6 1.0
CD2 U:HIS63 4.4 57.1 1.0
N U:HIS80 4.6 62.6 1.0
N U:GLY72 4.6 92.4 1.0
CA U:ASP83 4.6 61.6 1.0
CA U:HIS80 4.7 54.8 1.0
C U:HIS71 4.8 68.2 1.0
N U:ASP83 4.8 58.2 1.0
N U:HIS71 4.8 73.2 1.0

Zinc binding site 22 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2
Zinc binding site 22 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 22 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
V:Zn155

b:0.2
occ:1.00
OD1 V:ASP83 2.1 54.9 1.0
ND1 V:HIS71 2.1 57.9 1.0
ND1 V:HIS63 2.1 46.9 1.0
ND1 V:HIS80 2.3 51.6 1.0
CE1 V:HIS71 2.9 60.2 1.0
CG V:ASP83 2.9 54.7 1.0
OD2 V:ASP83 3.1 51.6 1.0
CE1 V:HIS63 3.1 52.5 1.0
CE1 V:HIS80 3.1 52.8 1.0
CG V:HIS63 3.2 46.9 1.0
CG V:HIS71 3.2 60.3 1.0
CG V:HIS80 3.3 53.4 1.0
CB V:HIS63 3.5 45.4 1.0
CB V:HIS80 3.7 55.9 1.0
CB V:HIS71 3.7 65.3 1.0
O V:THR136 3.9 62.3 1.0
CA V:HIS71 4.0 65.6 1.0
NE2 V:HIS71 4.1 61.1 1.0
NE2 V:HIS63 4.2 59.3 1.0
CB V:ASP83 4.2 61.5 1.0
CD2 V:HIS71 4.3 65.4 1.0
NE2 V:HIS80 4.3 64.1 1.0
CD2 V:HIS63 4.3 55.5 1.0
CD2 V:HIS80 4.4 58.1 1.0
CA V:ASP83 4.7 55.2 1.0
N V:GLY72 4.8 63.8 1.0
N V:HIS80 4.8 64.0 1.0
CA V:HIS80 4.9 60.1 1.0
N V:ASP83 4.9 53.6 1.0
C V:THR136 4.9 61.6 1.0
CD2 V:HIS46 4.9 55.1 1.0
N V:HIS71 5.0 67.2 1.0
C V:HIS71 5.0 70.7 1.0
CA V:HIS63 5.0 50.6 1.0

Zinc binding site 23 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2
Zinc binding site 23 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

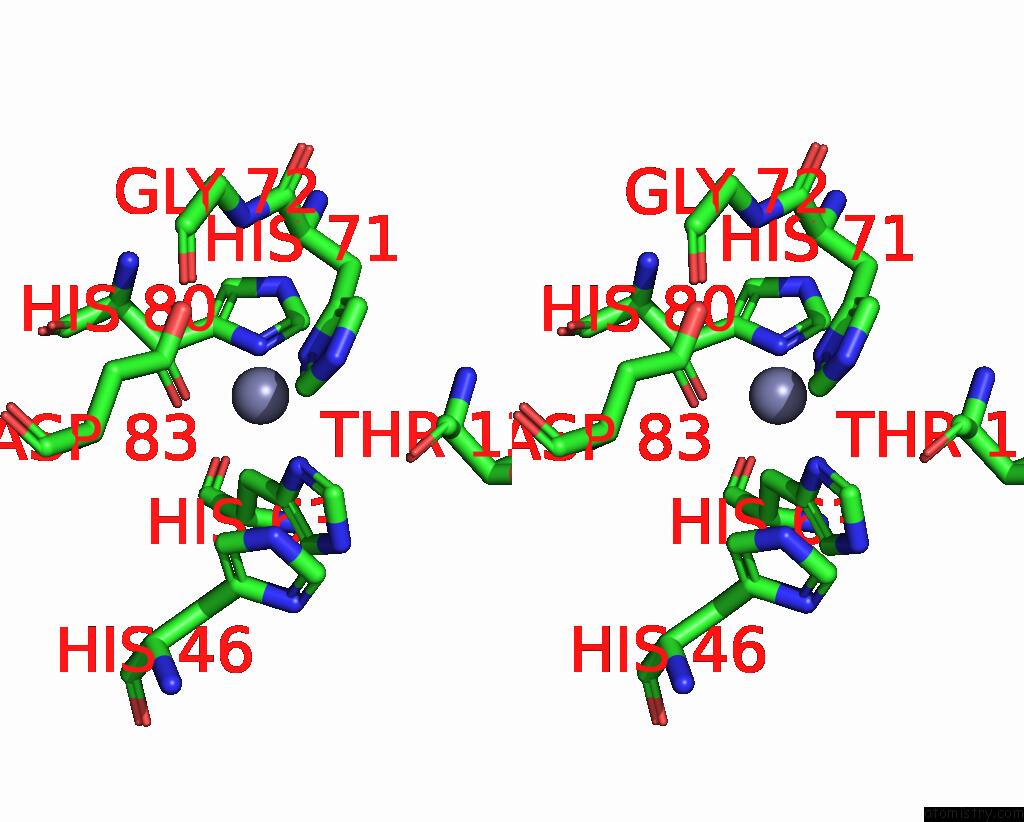

A full contact list of Zinc with other atoms in the Zn binding site number 23 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
W:Zn155

b:67.9
occ:1.00
ND1 W:HIS63 2.0 43.6 1.0
OD1 W:ASP83 2.0 51.7 1.0
ND1 W:HIS71 2.3 59.4 1.0
ND1 W:HIS80 2.3 46.4 1.0
CG W:ASP83 2.8 54.5 1.0
CG W:HIS63 3.0 45.6 1.0
CE1 W:HIS71 3.0 63.8 1.0
OD2 W:ASP83 3.0 63.6 1.0
CE1 W:HIS63 3.0 49.6 1.0
CE1 W:HIS80 3.2 57.9 1.0
CB W:HIS63 3.3 46.1 1.0
CG W:HIS80 3.3 53.4 1.0
CG W:HIS71 3.4 60.0 1.0
CB W:HIS80 3.6 54.5 1.0
CB W:HIS71 3.9 71.9 1.0
CD2 W:HIS63 4.1 51.3 1.0
NE2 W:HIS63 4.1 53.4 1.0
CA W:HIS71 4.1 59.3 1.0
CB W:ASP83 4.2 60.5 1.0
NE2 W:HIS71 4.2 60.2 1.0
NE2 W:HIS80 4.3 61.4 1.0
CD2 W:HIS80 4.4 59.7 1.0
CD2 W:HIS71 4.5 62.2 1.0
CA W:ASP83 4.6 57.0 1.0
O W:THR137 4.6 65.2 1.0
N W:ASP83 4.8 57.0 1.0
CA W:THR137 4.8 62.5 1.0
CA W:HIS63 4.8 47.7 1.0
CA W:HIS80 4.8 55.6 1.0
N W:HIS80 4.8 60.1 1.0
CD2 W:HIS46 4.9 47.3 1.0
N W:GLY72 4.9 64.5 1.0
C W:THR137 4.9 63.6 1.0

Zinc binding site 24 out of 24 in 3km2

Go back to Zinc Binding Sites List in 3km2
Zinc binding site 24 out of 24 in the As-Isolated Tomato Chloroplast Superoxide Dismutase


Mono view


Stereo pair view

A full contact list of Zinc with other atoms in the Zn binding site number 24 of As-Isolated Tomato Chloroplast Superoxide Dismutase within 5.0Å range:
probe atom residue distance (Å) B Occ
X:Zn155

b:69.9
occ:1.00
OD1 X:ASP83 2.1 56.0 1.0
ND1 X:HIS71 2.1 67.4 1.0
ND1 X:HIS80 2.3 53.7 1.0
ND1 X:HIS63 2.3 52.5 1.0
CG X:ASP83 2.8 55.2 1.0
CE1 X:HIS71 2.9 66.4 1.0
OD2 X:ASP83 3.0 53.6 1.0
CE1 X:HIS80 3.1 51.5 1.0
CG X:HIS71 3.2 66.6 1.0
CG X:HIS80 3.2 52.9 1.0
CG X:HIS63 3.3 49.7 1.0
CE1 X:HIS63 3.3 53.0 1.0
CB X:HIS63 3.5 46.5 1.0
CB X:HIS80 3.6 56.7 1.0
CB X:HIS71 3.7 66.7 1.0
O X:THR136 3.8 61.4 1.0
CA X:HIS71 3.9 59.8 1.0
NE2 X:HIS71 4.1 64.5 1.0
CB X:ASP83 4.2 59.2 1.0
NE2 X:HIS80 4.2 53.8 1.0
CD2 X:HIS71 4.3 65.8 1.0
CD2 X:HIS80 4.3 55.4 1.0
NE2 X:HIS63 4.4 56.8 1.0
CD2 X:HIS63 4.4 52.9 1.0
CA X:ASP83 4.7 56.8 1.0
N X:GLY72 4.7 75.0 1.0
N X:HIS80 4.7 62.2 1.0
CA X:HIS80 4.8 57.2 1.0
N X:ASP83 4.9 57.9 1.0
N X:HIS71 4.9 62.0 1.0
C X:HIS71 4.9 70.8 1.0
C X:THR136 4.9 59.7 1.0

Reference:

A.Galaleldeen, A.B.Taylor, P.J.Hart. Biophysical Properties of Tomato Chloroplast Sod To Be Published.
Page generated: Sat Sep 26 11:11:28 2020
© Copyright 2008-2020 by atomistry.com
Home   |    Site Map   |    Copyright   |    Contact us   |    Privacy
